JFMIX

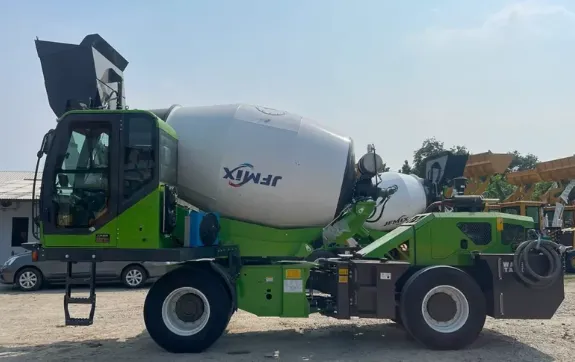

Type Self Loading Mixer JFMIX
| CONCRETE OUTPUT | 3500 L/batch |
| TOTAL DRUM CAPACITY | 5200 L |
| CAPACITY BUCKET | 0,6 m³ |
| WATER TANK CAPACITY | 800 L |
| MAX DRUM SLEWING ANGLE | 270O |
| PRODUCTIVITY | 4 batch/hour, 14m3/h |
| ENGINE POWER | 85 KW |
| ENGINE TYPE | YUCHAI, 4105, Turbo Charged |
| OPERATING WEIGHT | 7600 kg |
| DRIVE TYPE | 4x4 |
| TRANSMISSION | Automatic, 4 F+4R Shift |
| TYRE NUMBER | 12R22.5 |
| GRADEABILITY | 40O |
| WHEELBASE | 2700 mm |
| TREAD | 1700 mm |
| MINI.TURN RADIUS | 5300 mm |
| OVERALL SIZE | 7830x2680x3300 mm |
| Specification | Value |
|---|---|
| Concrete Output | 4.000 UBatch |
| Total Drum Capacity | 6.100 L |
| Front Shovel Capacity | 600 L |
| Water Tank Capacity | 2 x 330 L |
| Max. Drum Slewing Angle | 290° |
| Gradeability | 40° |
| Wheelbase | 2.450 mm |
| Tread | 1.820 mm |
| Mini Turn Radius | 4.000 mm |
| Productivity | 4 Batch/Hour, 16 m³/H |
| Engine Power | 91 kW |
| Engine Type | Vuchai, 4105, Turbo-Charged |
| Drive Type | 4x4 |
| Transmission | Automatic, 4F+4R Shift |
| Tyre Size | 16/70-20 |
| Tyre Number | 4 pcs |
| Operating Weight | 9.900 kg |
| Overall Size (mm) | 7.640 x 2.870 x 3.520 |
